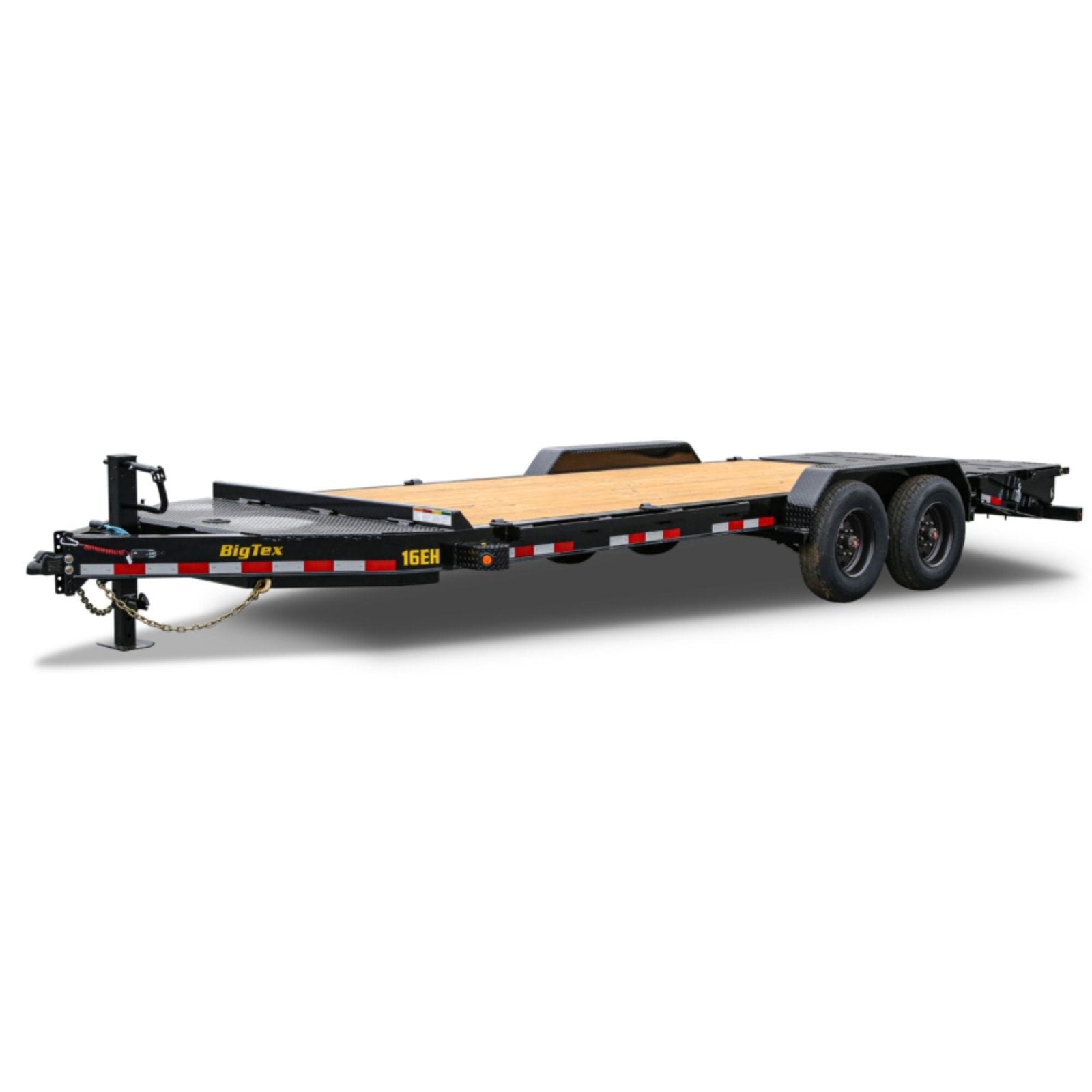

Big Tex Heavy Duty I-Beam Equipment Trailer | 16EH
Big Tex Heavy Duty I-Beam Equipment Trailer | 16EH
Regular price
$1,199.00 USD
Regular price
Sale price
$1,199.00 USD
Shipping calculated at checkout.
Part of the all-new X-Series, the 16EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 16EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It’s enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 16EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.
| Standard Feature | Available Options | |
| Axles | 2 – 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps | |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | Adjustable 2-5/16” Demco EZ Latch |
|
| Safety Chains | 3/8″ Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8″ I-Beam | |
| Cross-Members | 3″ Channel on 16″ Centers | |
| Front Stop Rail | 3/16″ Fabricated Front Stop Rail | |
| Floor | APEX Fortified Lumber | |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) | |
| Ramps | 5′ Tall, 16″ Stand Up Rams (Spring Assisted) |
|
| Dovetail | 40” Cleated Dovetail | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST215/75 R-17.5 Load Range H | |
| Bolt Pattern | 8-Lug | |
| Spare Mount | Front Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire (ST215/75 R-17.5 LR-H) |
| Paint Color | Black |
|
| Rubrail | Rub Rail Along Both Sides | |
| Tie-Downs | (6) 5/8″ D-Rings | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
| Storage | Lockable Toolbox Between Risers on Gooseneck Model Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only) | |
| Steps & Handles | Convenient Side-Step to Access Deck |
| Model | 16EH-18D3A | 16EH-20D3A | 16EH-22D3A | 16EH-24D3A | 16EHG-20D3A | 16EHG-22D3A | 16EHG-24D3A |
| Pull Type | Bumperpull | Bumperpull | Bumperpull | Bumperpull | Gooseneck | Gooseneck | Gooseneck |
| GVWR | 17500 lbs | 17500 lbs | 17500 lbs | 17500 lbs | 20000 lbs | 20000 lbs | 20000 lbs |
| GAWR (Ea. Axle) | 8000 lbs | 8000 lbs | 8000 lbs | 8000 lbs | 8000 lbs | 8000 lbs | 8000 lbs |
| Empty Weight | 3190 lbs | 3320 lbs | 3480 lbs | 3650 lbs | 3700 lbs | 3860 lbs | 4040 lbs |
| Cargo Capacity | 14310 lbs | 14180 lbs | 14020 lbs | 13850 lbs | 16300 lbs | 16140 lbs | 15960 lbs |
| Bed Length | 18′ | 20′ | 22′ | 24′ | 20′ | 22′ | 24′ |
| Bed Width | 83″ | 83″ | 83″ | 83″ | 83″ | 83″ | 83″ |
