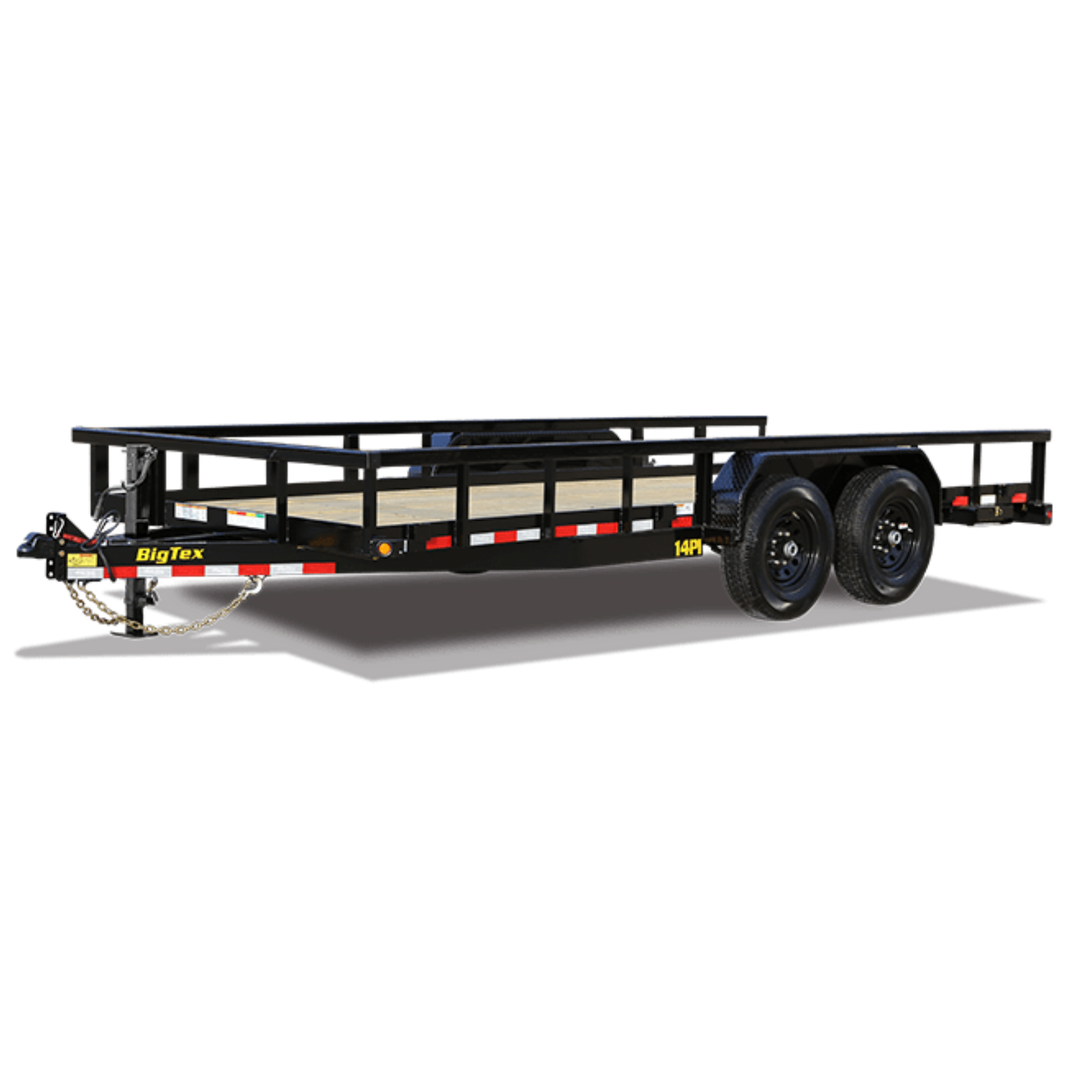

Big Tex Heavy Duty Tandem Axle Pipe Top Utility Trailer | 14PI
Big Tex Heavy Duty Tandem Axle Pipe Top Utility Trailer | 14PI
Regular price
$1,299.00 USD
Regular price
Sale price
$1,299.00 USD
Shipping calculated at checkout.
Facing down heavy-duty, demanding, and challenging loads? Then it’s time to call in the big guns with the 14PI Heavy Duty Tandem Axle Pipe Top Utility Trailer—a heavy-duty pipe-top equipment trailer that’s specifically designed and built to take on the toughest and heaviest loads. Coming standard with an adjustable forged coupler and LED lights, it’s a rugged and durable utility trailer that has the muscle for heavy-duty hauling and transport. And it features a treated floor for a professional-grade appearance that also delivers the brawn.
| STANDARD FEATURE | AVAILABLE OPTIONS | |
| Axles | 2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
| Suspension | Multi-Leaf Spring w/ Equalizer | |
| Coupler | Adjustable 2-5/16” Demco EZ Latch | Adjustable Pintle in Channel |
| Safety Chains | 1/4″ Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 8,000# Drop-Leg Jack (Side Wind) | |
| Frame | 5″ x 3″ x 5/16″ Angle | |
| Cross-Members | 3″ Channel on 16″ Centers | |
| Floor | Treated Pine Floor | Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot) |
| Fenders | 9″ x 72″ 14 Ga. Diamond Plate Double Broke | |
| Ramps | 4′ Slide in Channel Ramps |
|
| Stake Pockets | Outside Frame Stake Pockets | Additional Stake Pockets (Each) |
| Trailer Plug | 7-Way RV | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Grommet-Mounted Lifetime L.E.D. Lighting | |
| Tires | ST235/80 R-16 Load Range E | Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern | 8-Bolt | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire |
| |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black |
|
| Tie-Downs | 5/8″ D-Ring | |
| Sides | 15″ Tall Open sides with 3″x 2”x 3/16″ Angle uprights and 3″ x 3″ Square Tubing Top Rail |
|
| Storage | Bolt-On Landscape Box (24″ x 24″ x 87″) |

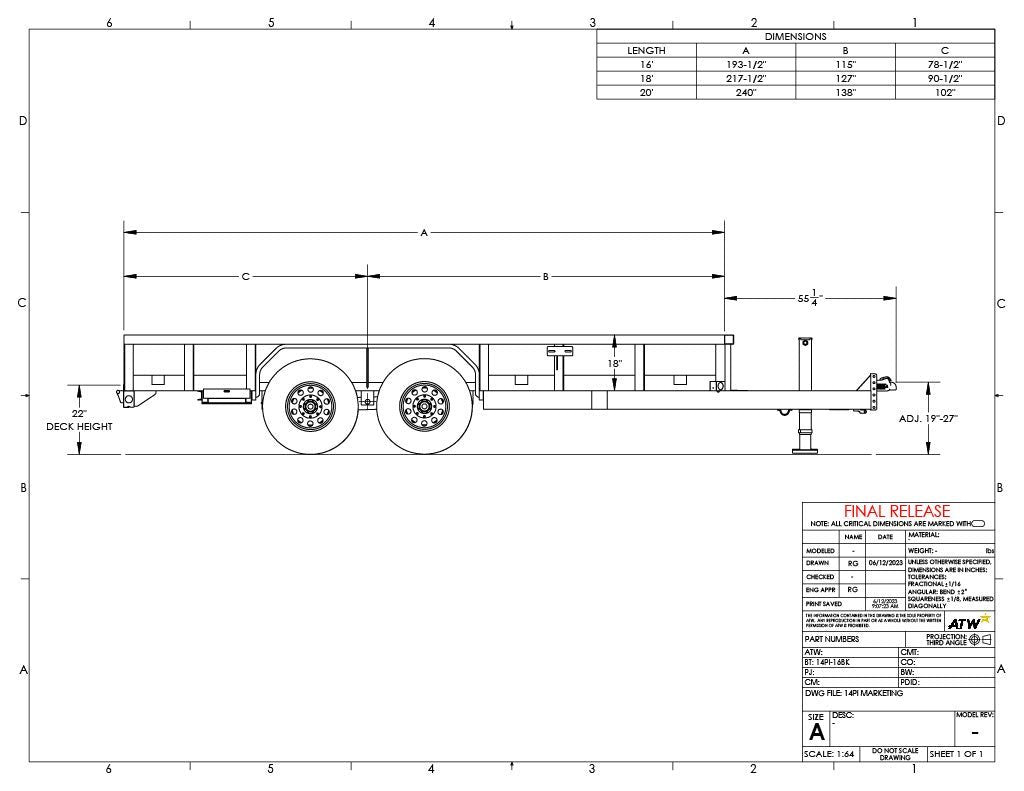

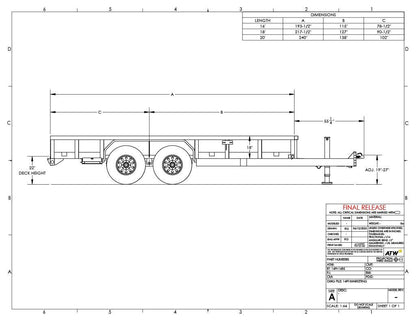

| MODEL | 14PI-16 |
| PULL TYPE | Bumperpull |
| GVWR | 14000 lbs |
| GAWR (EA. AXLE) | 7000 lbs |
| EMPTY WEIGHT | 2740 lbs |
| CARGO CAPACITY | 11260 lbs |
| BED LENGTH | 16′ |
| BED WIDTH | 83″ |
| A | 193-1/2″ |
| B | 115″ |
| C | 78-1/2″ |
| TONGUE LENGTH | 42-3/4″ |
| MODEL | 14PI-18 |
| PULL TYPE | Bumperpull |
| GVWR | 14000 lbs |
| GAWR (EA. AXLE) | 7000 lbs |
| EMPTY WEIGHT | 2890 lbs |
| CARGO CAPACITY | 11110 lbs |
| BED LENGTH | 18′ |
| BED WIDTH | 83″ |
| A | 217-1/2″ |
| B | 127” |
| C | 90-1/2″ |
| TONGUE LENGTH | 42-3/4″ |
| MODEL | 14PI-20 |
| PULL TYPE | Bumperpull |
| GVWR | 14000 lbs |
| GAWR (EA. AXLE) | 7000 lbs |
| EMPTY WEIGHT | 3040 lbs |
| CARGO CAPACITY | 10960 lbs |
| BED LENGTH | 20′ |
| BED WIDTH | 83″ |
| A | 240″ |
| B | 138″ |
| C | 102″ |
| TONGUE LENGTH | 42-3/4″ |
