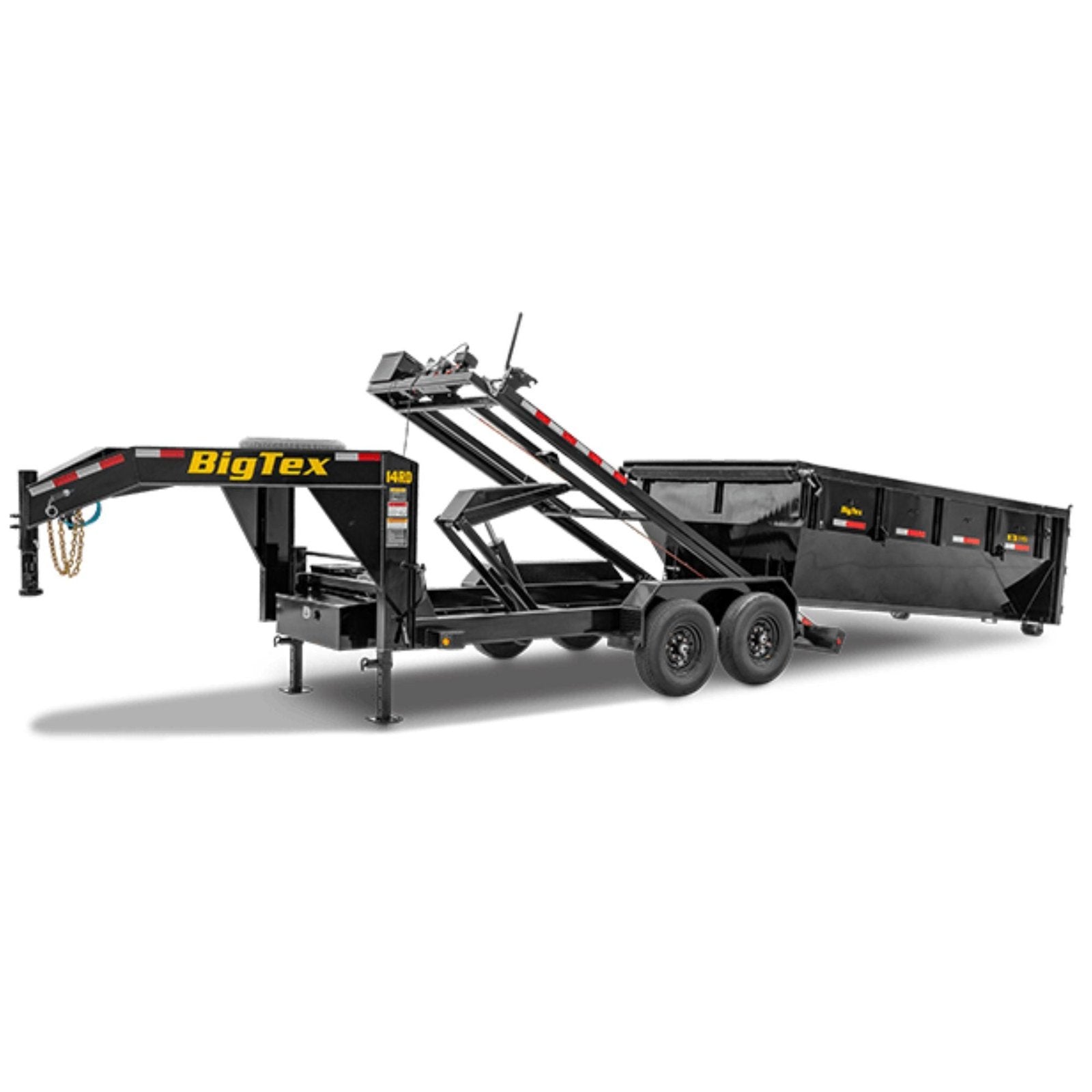

Big Tex Roll-Off Gooseneck Dump Trailer | 14RD-14
Big Tex Roll-Off Gooseneck Dump Trailer | 14RD-14
Regular price
$1,495.00 USD
Regular price
Sale price
$1,495.00 USD
Shipping calculated at checkout.
Gooseneck configured for superior stability and carrying weight, the 14RD Roll-Off Gooseneck Dump Trailer features a 15,900 lbs. G.V.W.R. to meet the demands of the construction, junk removal, and the dumpster rental business. Built to service multiple job sites with a single trailer, it’s designed with professional-grade parts to hold up against the challenges of day-to-day use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the gooseneck configured 14RD gets the job done when the going gets tough.
| Standard Feature | Available Options | |
| Axles | 2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes on Both Axles | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | Round Adjustable Pin 2-5/16” Gooseneck Coupler | |
| Safety Chains | 3/8″ Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8″ I-Beam (10#) | |
| Cross-Members | 3″ Channel on 16″ Centers | |
| Floor | 10 Gauge Smooth Steel | |
| Fenders | 9″ x 72″ 14 Ga. Diamond Plate Double Broke | |
| Trailer Plug | 7-Way RV | |
| Lights | Recessed, Grommet-Mounted L.E.D. Lighting | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern | 8-Lug | |
| Spare Mount | Side Spare Tire Mount | |
| Spare Tire |
| |
| Paint Type | Professional Finish w/ Primer Standard | |
| Paint Color | Black | |
| Tie-Downs | (4) 1/2″ D-Rings Inside Bed to Secure Equipment Along Sides and Rear for Cargo Control | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
| Battery | 12V Deep Cycle Gr 24 for Hoist, 12v GR24 AGM for Winch | |
| Charger | (2) 5A 110V on Board Battery Charger for Hydraulic System and Winch | |
| Gate | Barn Doors | |
| Power | Power Up/Power Down & Gravity Down Hydraulic Pump |
|
| Ram | Self-Contained Scissor | |
| Sides | 48″ Tall (12 Ga) with formed Channel Supports | |
| Storage | Lockable Pump and Battery Box mounted in Front of Bed | |
| Tarp | Fully-Formed Tarp Shroud with Crank Tarp & Rear Tarp Rod Holders | |
| Top Rail | 4″x 3″ Rectangular Tubing | |
| Battery Box | Tilt Bed mounted Battery Box for Independently wired Winch Power System | |
| Rollers | Greaseable Rollers | |
| Steps & Handles | Convenient Side-Step to Access Top Rail | |
| Winch | Specially Designed High Duty Cycle 15K Winch |
| Model | 14RD-14 |
| Pull Type | Gooseneck |
| GVWR | 15900 lbs |
| GAWR (Ea. Axle) | 7000 lbs |
| Empty Weight | 3760 lbs |
| Cargo Capacity | 9860 lbs |
| Bed Length | 14′ |
| Bed Width | 83″ |
