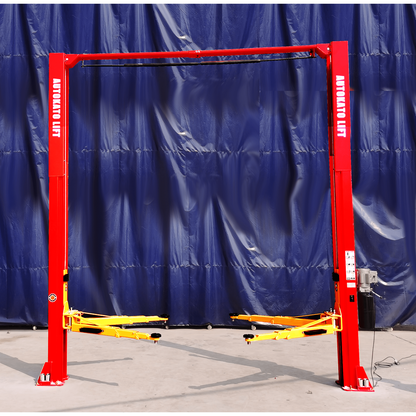

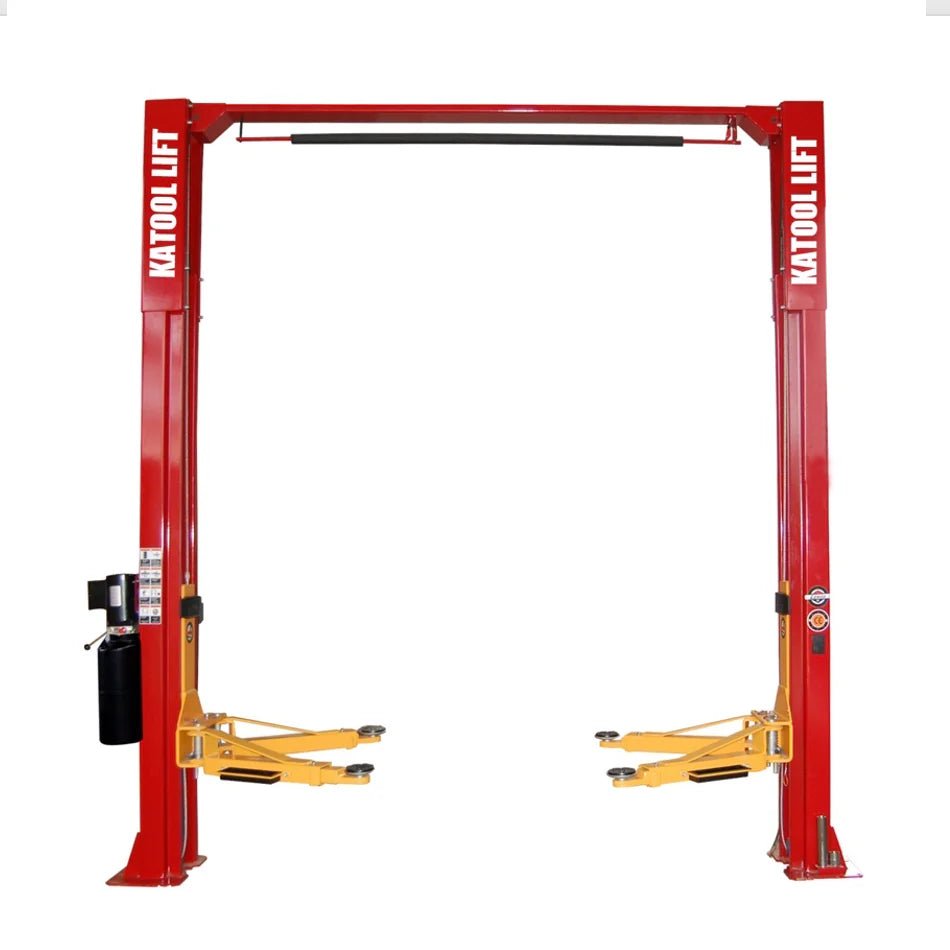

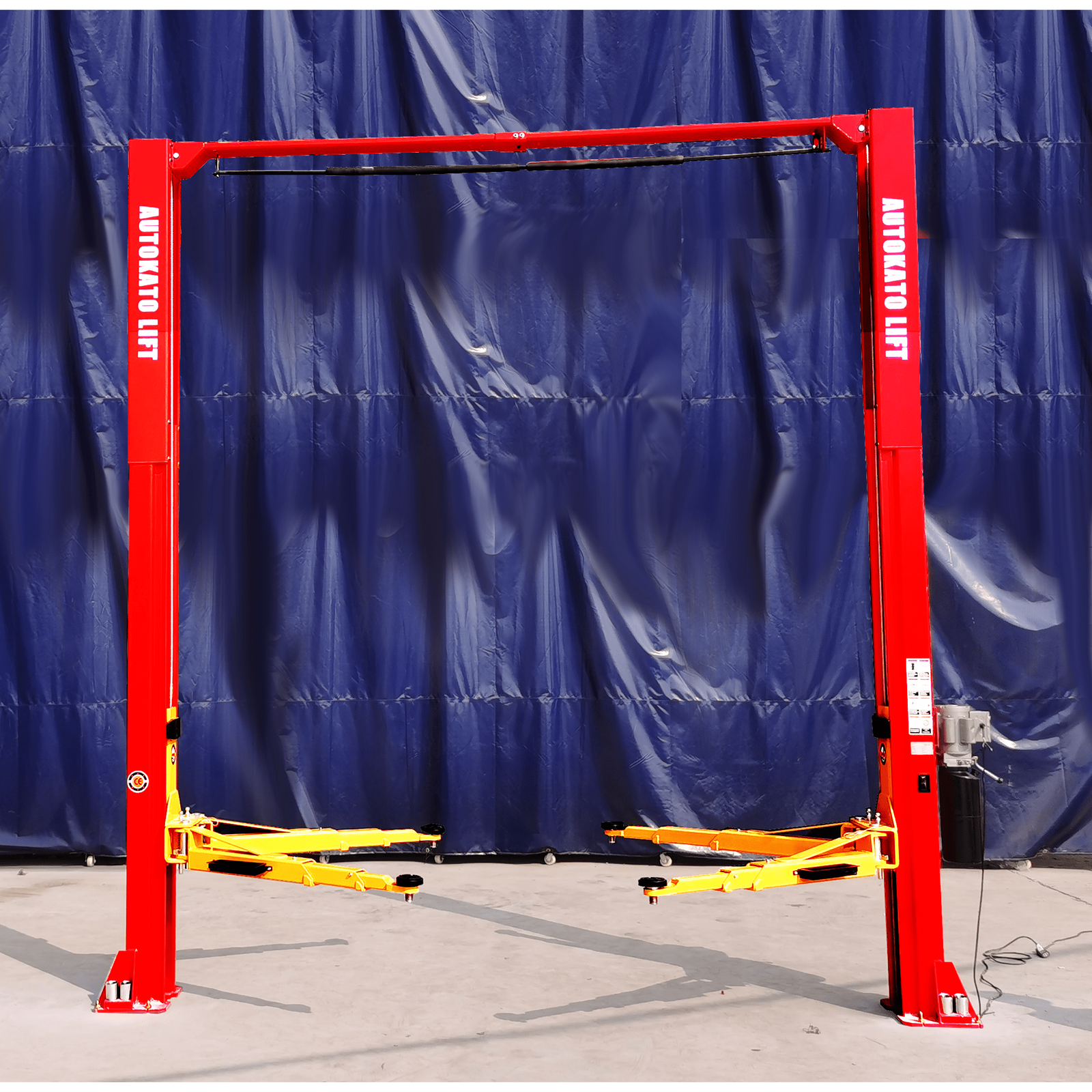

Katool Two Post Clear-floor Vehicle Lift 11,000 lbs Lifting Capacity M110


Product Description

KT-M110 11000lbs Vehicle Lift

  • 11000lbs lifting capacity
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
  • Symmetric clear-floor design
  • Manual safety release from two sides

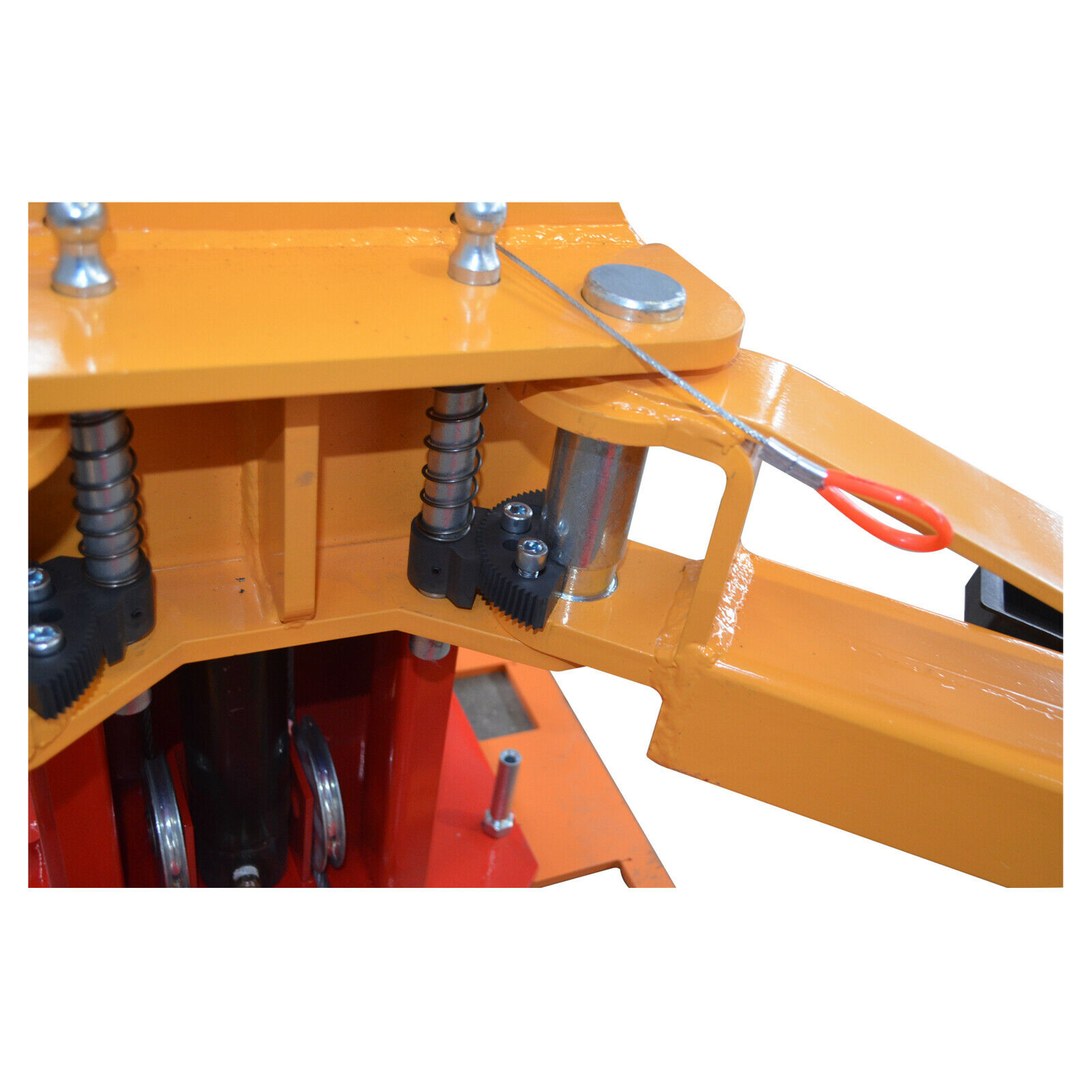

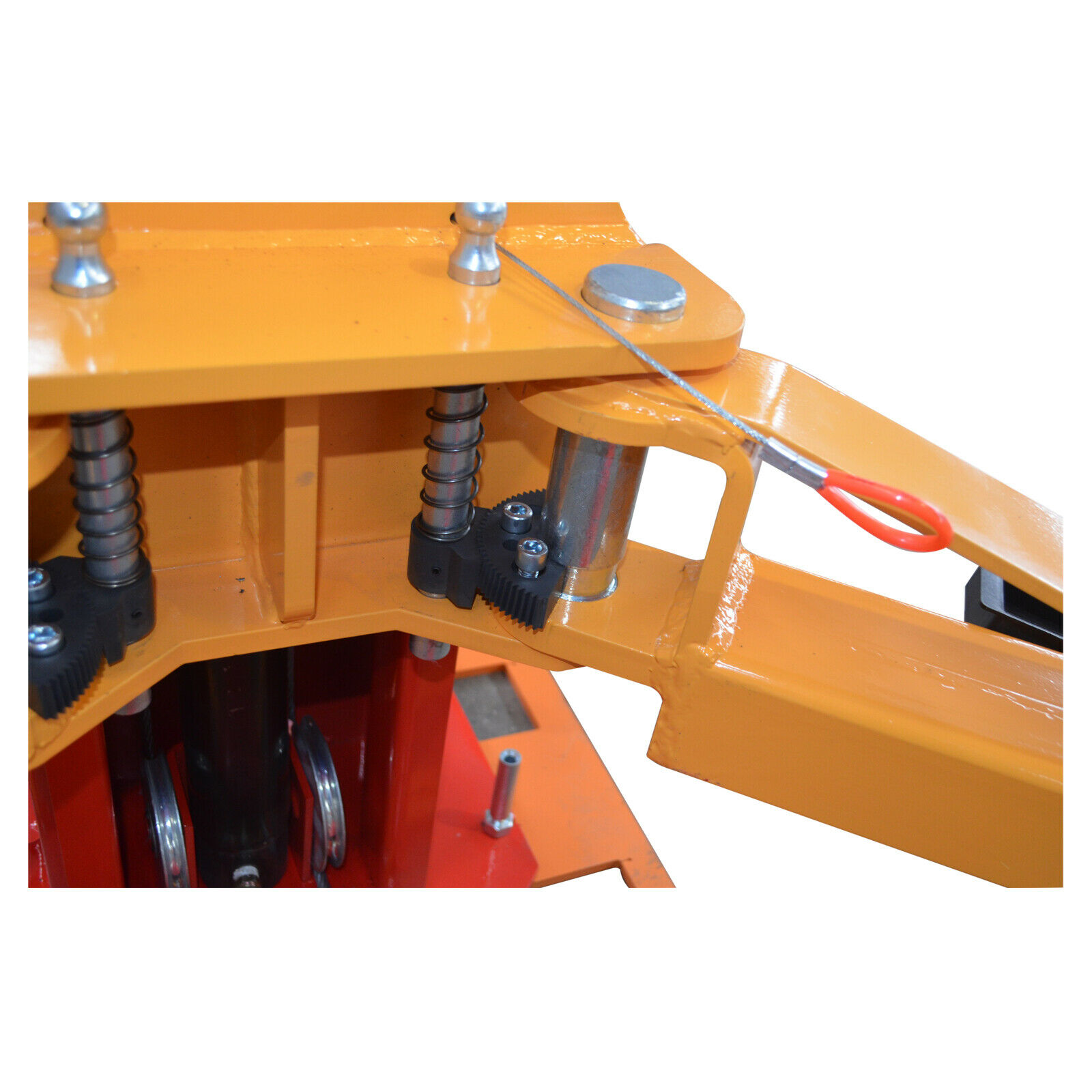

  • Symmetric arm

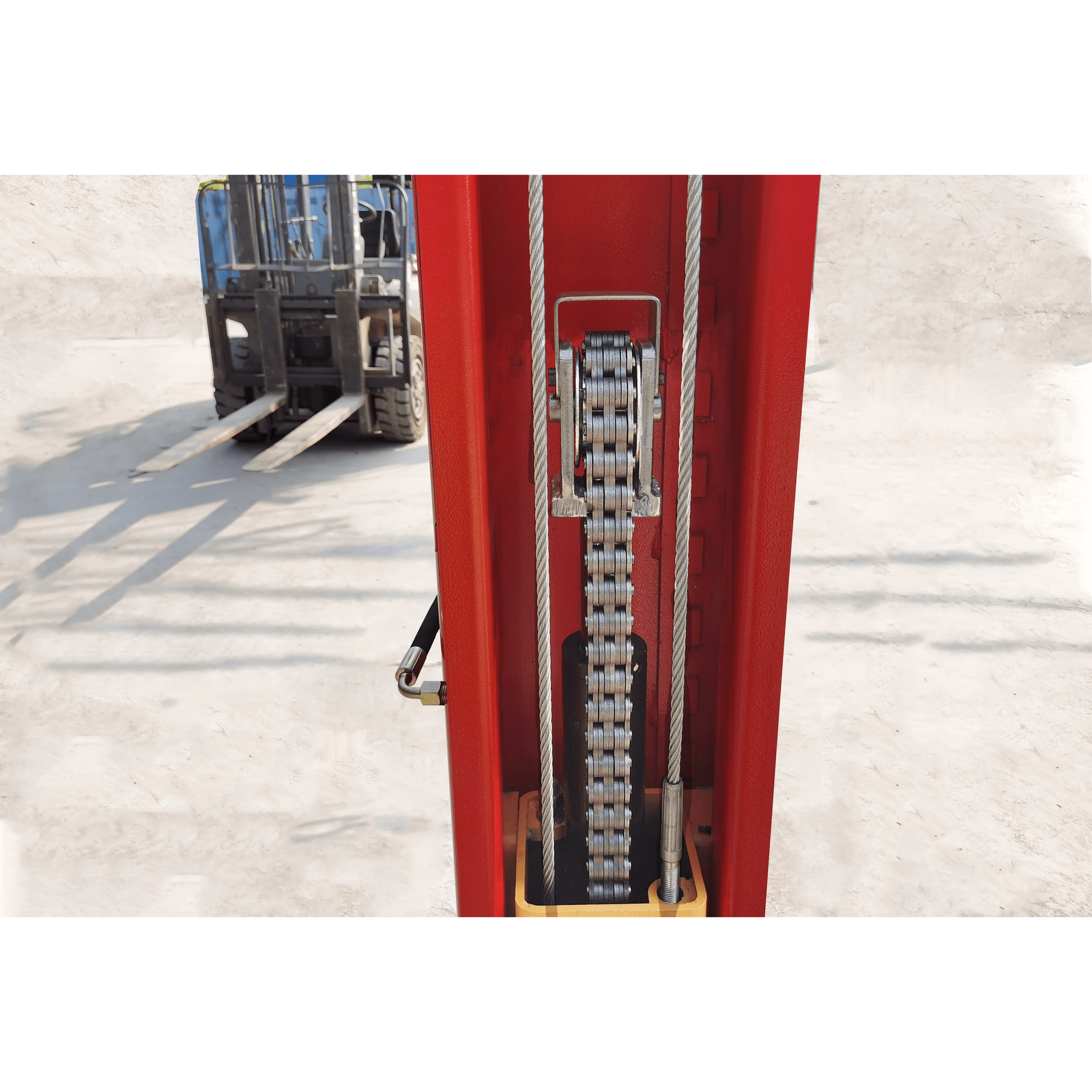

  • Dual Hydraulic Chain-Drive Cylinders
  • Rubber pad door opening protection

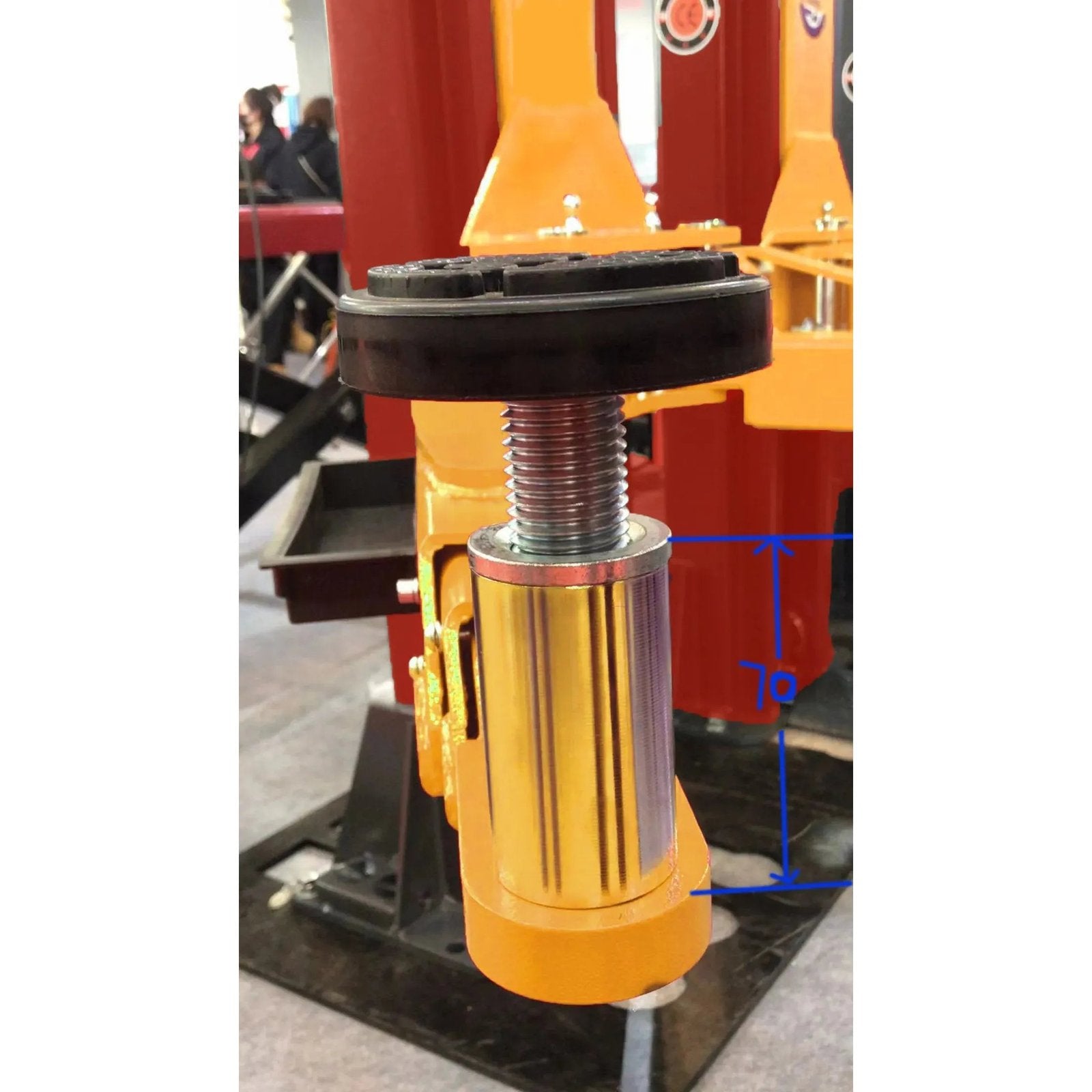

  • Comes with extension support adaptor sets of +30mm and +120mm
  • Added overhead safety shutoff bar
  • Feet-protection safety guardrails with tools box
  • Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional)

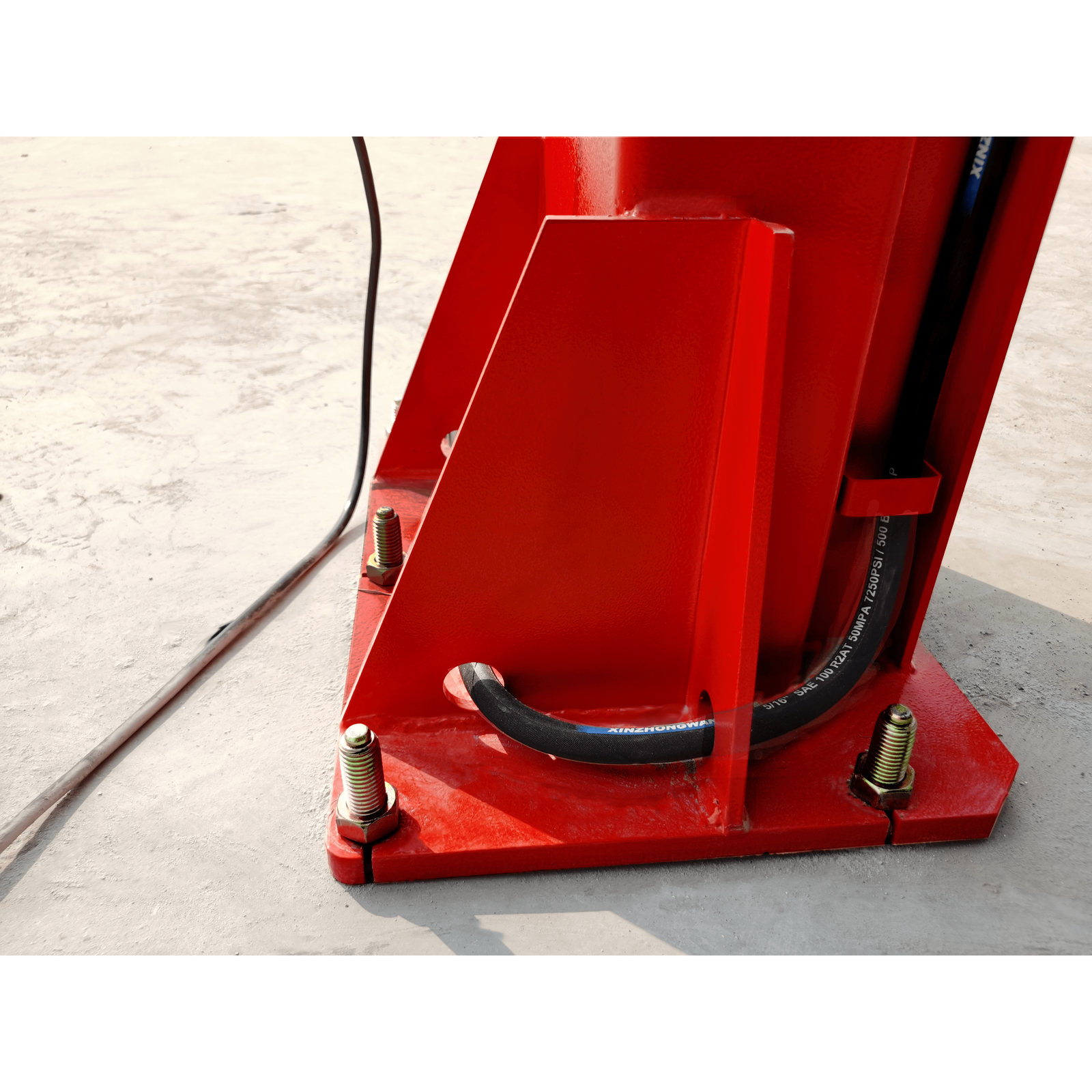

Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

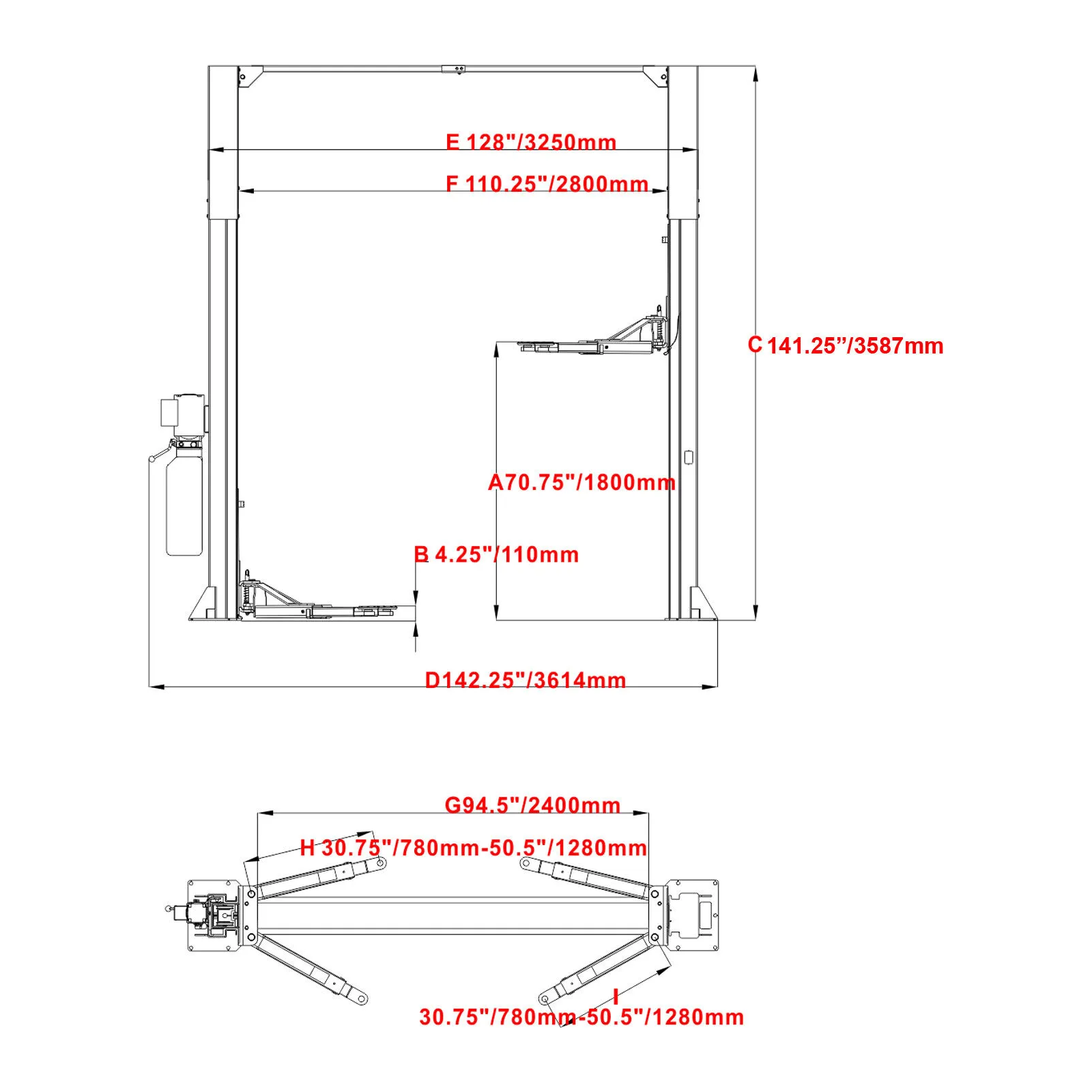

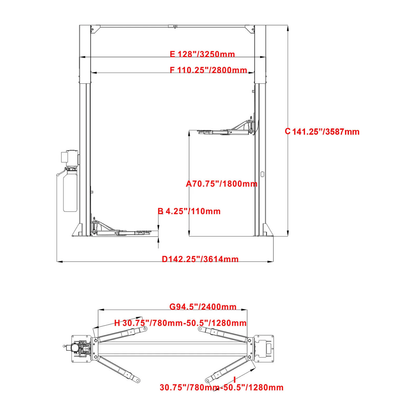

Specifications

Lifting Capacity 11000lbs.(5000KG)
Max. Lifting Height 70.75″/1800mm
Min. Height 4.25″/110mm
Height Overall 141.25″/3587mm
Width Overall 142.25″/3614mm
Outside Column 128″/3250mm
Inside Column 110.25″/2800mm
Dirve-Thru Clearance 94.5″/2400mm
Front Arm Reach (Min) 30.75″/780mm (2 stages)
Front Arm Reach (Max) 50.5″/1280mm (2 stages)
Rear Arm Reach (Min) 30.75″/780mm (2 stages)
Rear Arm Reach (Max) 50.5″/1280mm (2 stages)
Motor 220VAC/60HZ/1PH/2.2KW
Net Weight 1367lbs/620KG
